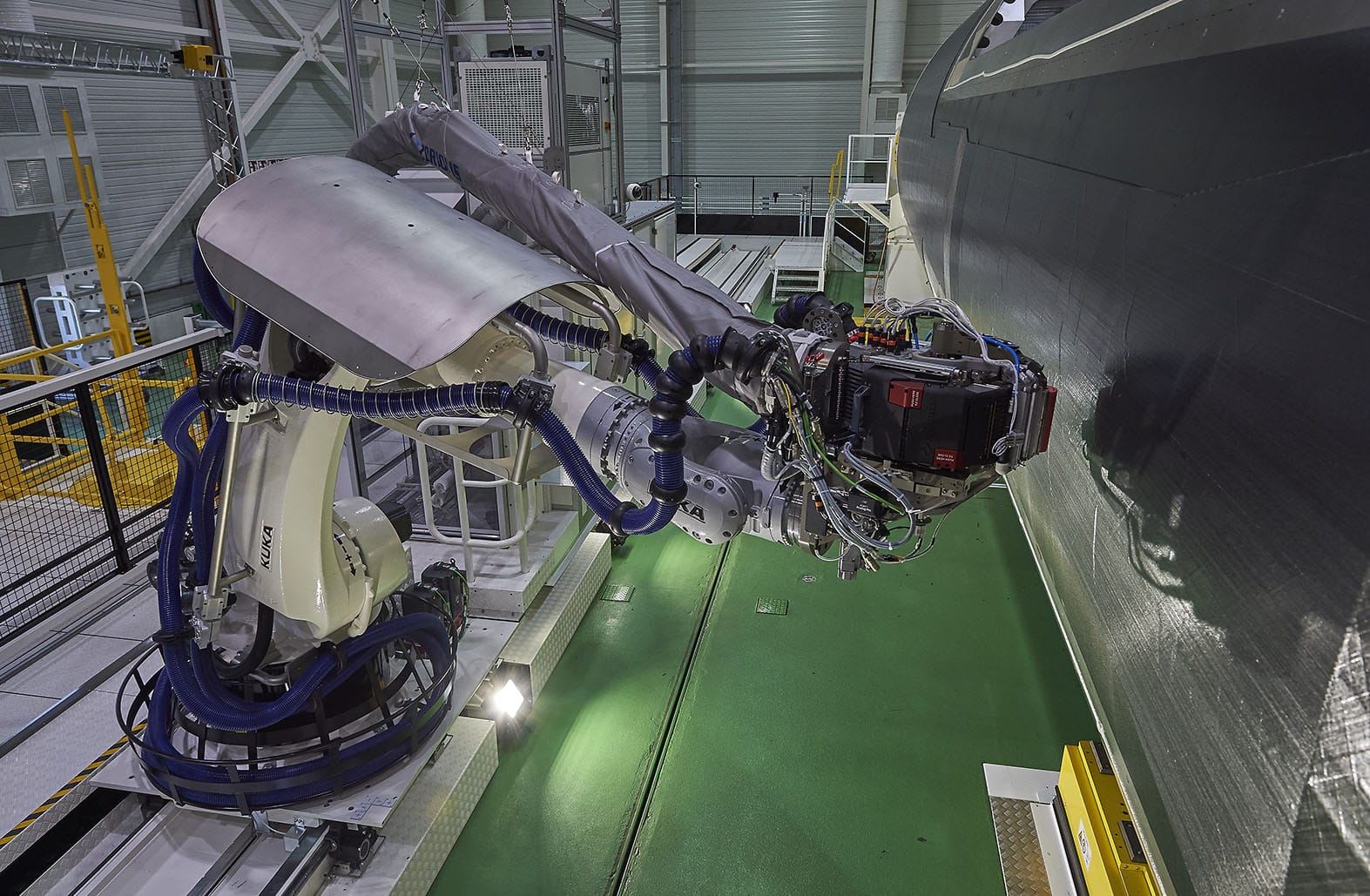

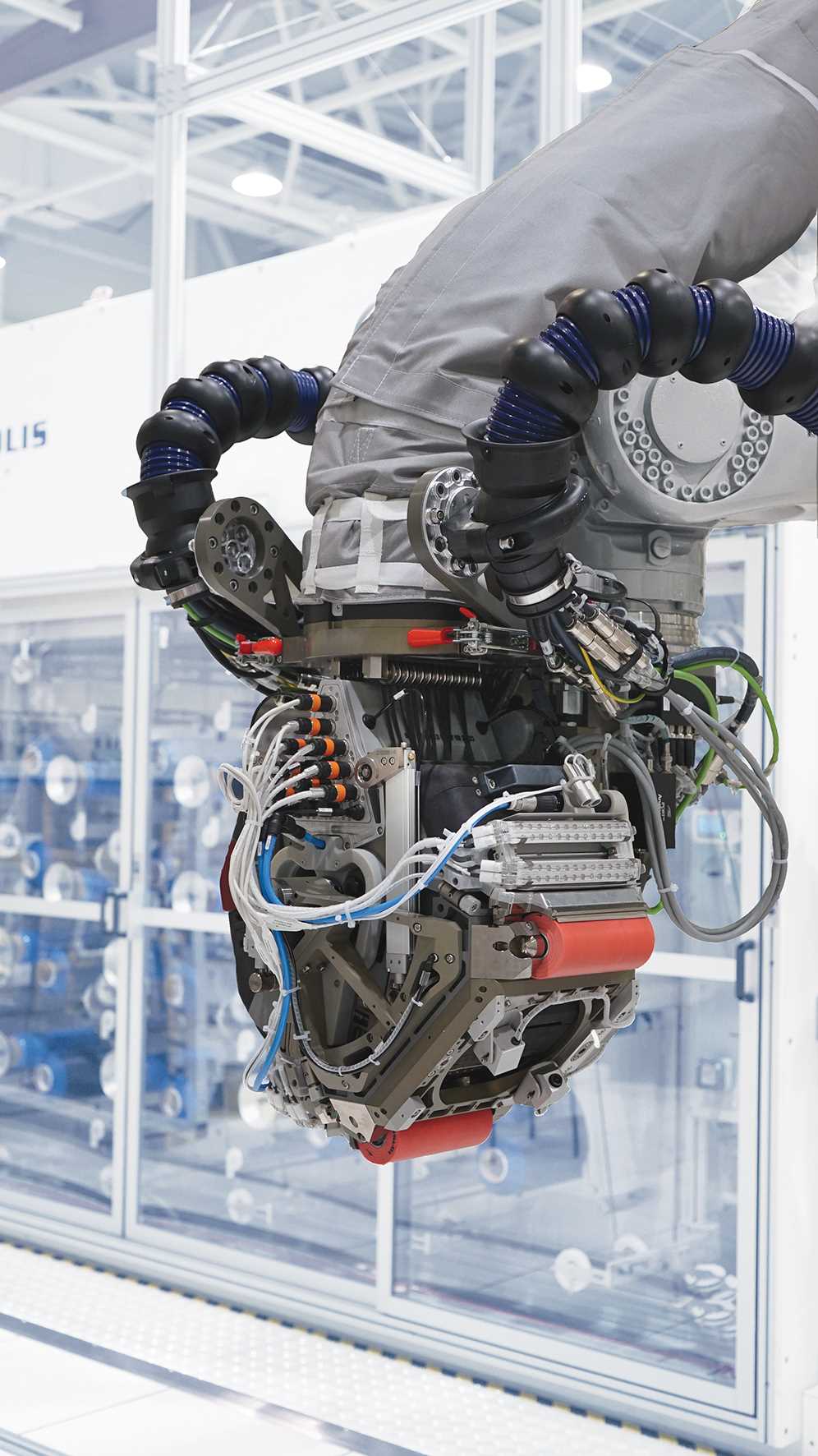

High speed bidirectional fiber placement robot
Coriolis C2
Need more information?
Advantages
High performance robot for large part manufacturing (up to 80m)
Maximised productivity due to 24-fiber 1/4 inch placement
Unique Autoreverse functionality

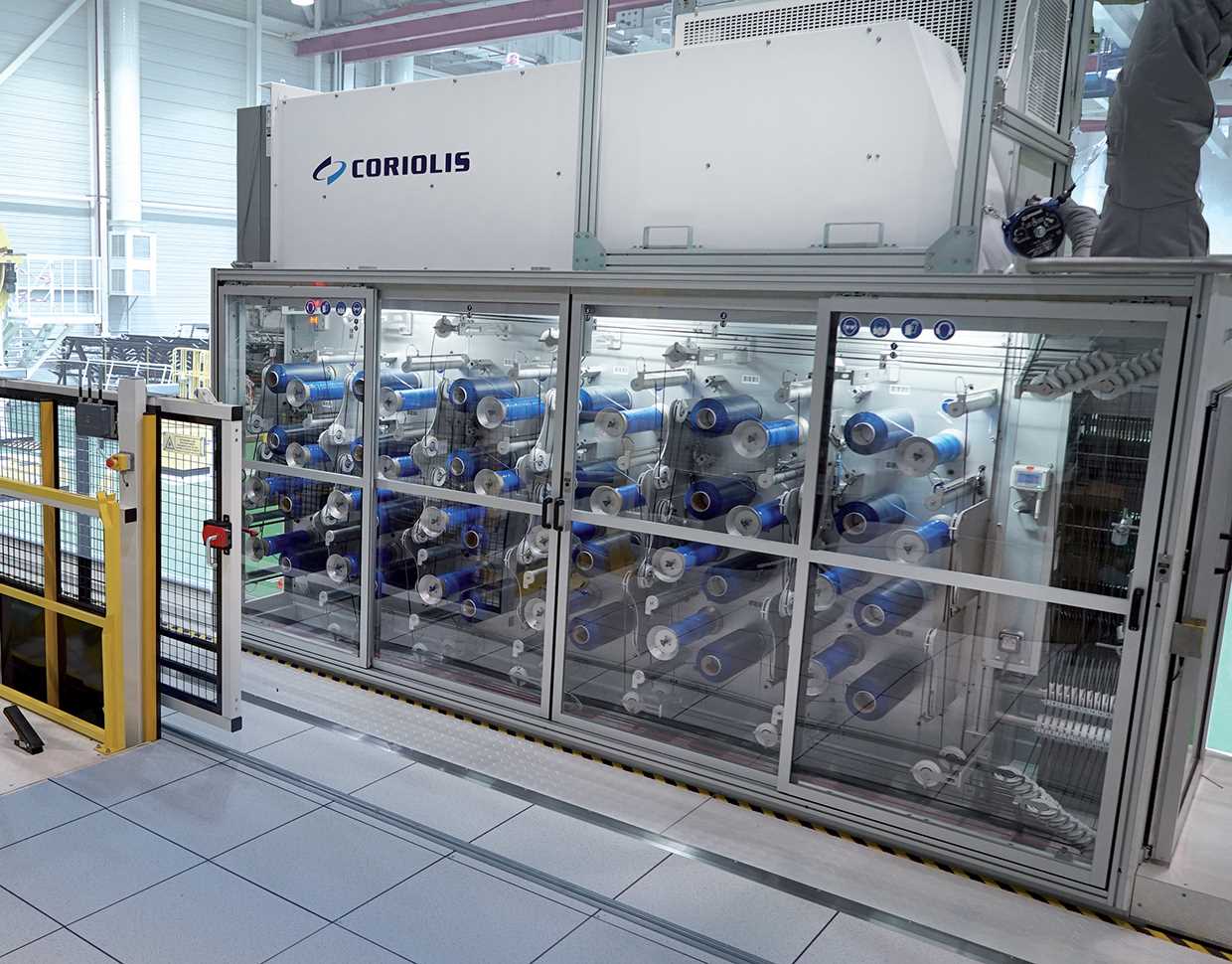

High capacity creel house for heavy spools (15kgs / 33lbs)

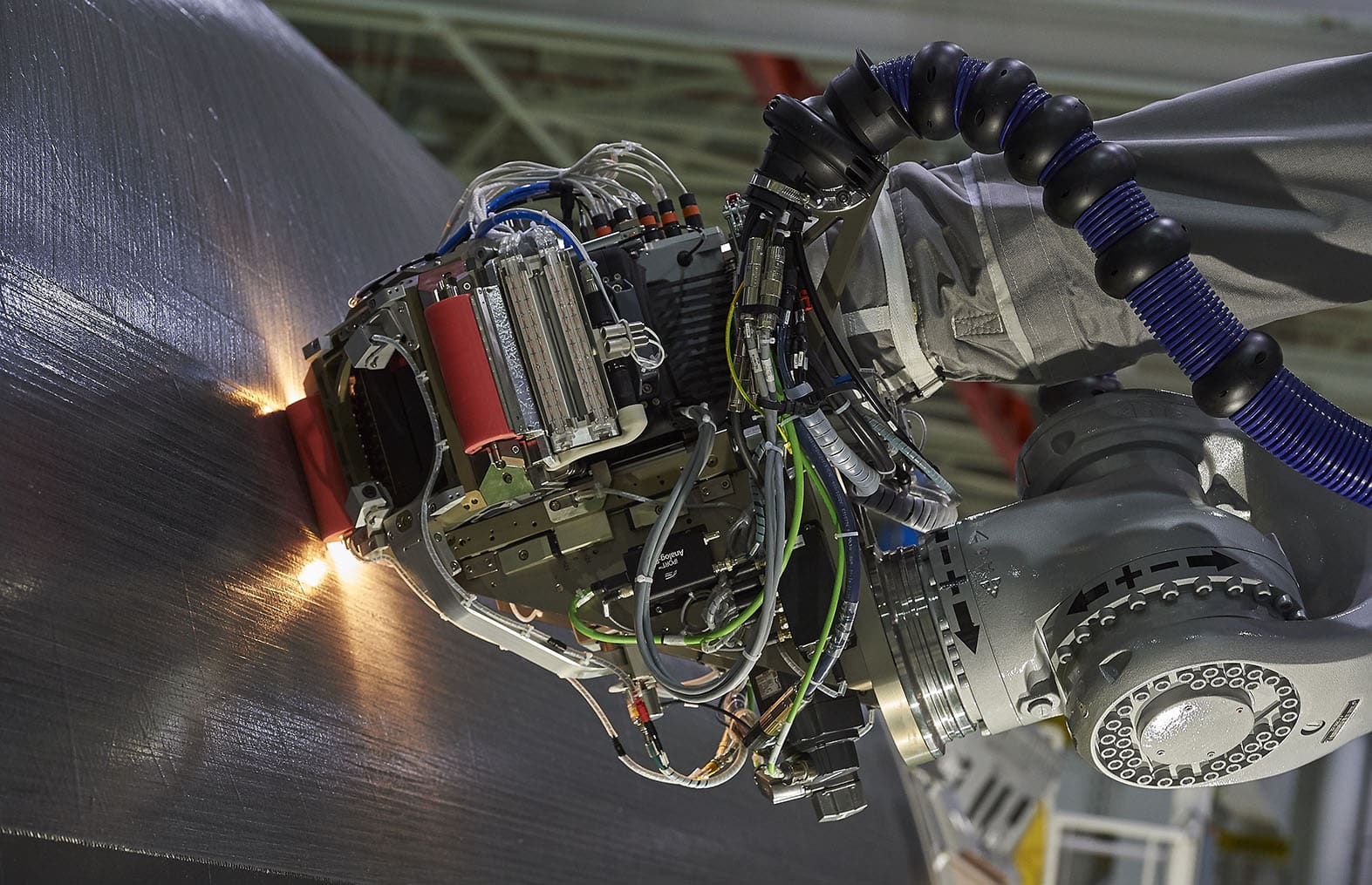

Applications
Fuselage and panel
Concave or convex panels with double curvatures
Spar and frame
High compaction around edges
Ply drop-offs and ramps over corners
Technical informations
AFP Process specifications
| Configuration | 24*1/4″ |
| Maximum head speed while feeding fibers | 0.5m/s |
| Maximum head speed while cutting fibers | 0.5m/s |
| Repeatability at 0.5m/s of cutting and feeding fibers | +/- 2.5mm |
| Maximum lay-up speed* | 1m/s |
| Compaction force control | Up to 1500 N |
| Temperature controls (head, tubes and creel) | < 15°C |
| Tolerance between courses | +2.5/-0 mm |
| Minimum distance between cutting and feeding an individual fiber** | 10 mm |
| Minimum fiber length* | 110 mm |
| Dynamic head compliance | +/- 12.5 mm |
| Twist-free feeding tubes | |
| HMI for advanced production management | V5 |
| Bar-code reader for material traceability |
Options
| Offline programming software | Coriolis CADFiber® and CATFiber® |
| Camera verification | Infrared and/or visual range |
| Integrated laser projector for contour inspection | |
| Automated calibration system for cut & feed actuators |
Cell configurations
| Robot on a linear axis | Up to 80 m in length |
| Vertical axis positioner | 0,5 to 6 T |
| Horizontal axis positioner | 0,5 to 2×40 T |
Main Components
| Robot | KUKA Fortec |
| Controller | Siemens |
| Linear axis | Güdel |
| Positionner | Coriolis Composites |
Materials
| Thermoset prepreg | 135 to 268 gsm dry |
Packaging
| Maximum diameter | 292 mm |
| Maximum gross weight | 15 kgs |
| Backing film rewinder | |
| Cardboard Core Inner diameter for Thermoset material | 3in (76+/- 1mm) |
| Cardboard Core Length for Thermoset material | 406 +/- 1mm |
*Depends on the material, heat source, part shape, controller and standard cycles
** Layup speed can be limited
