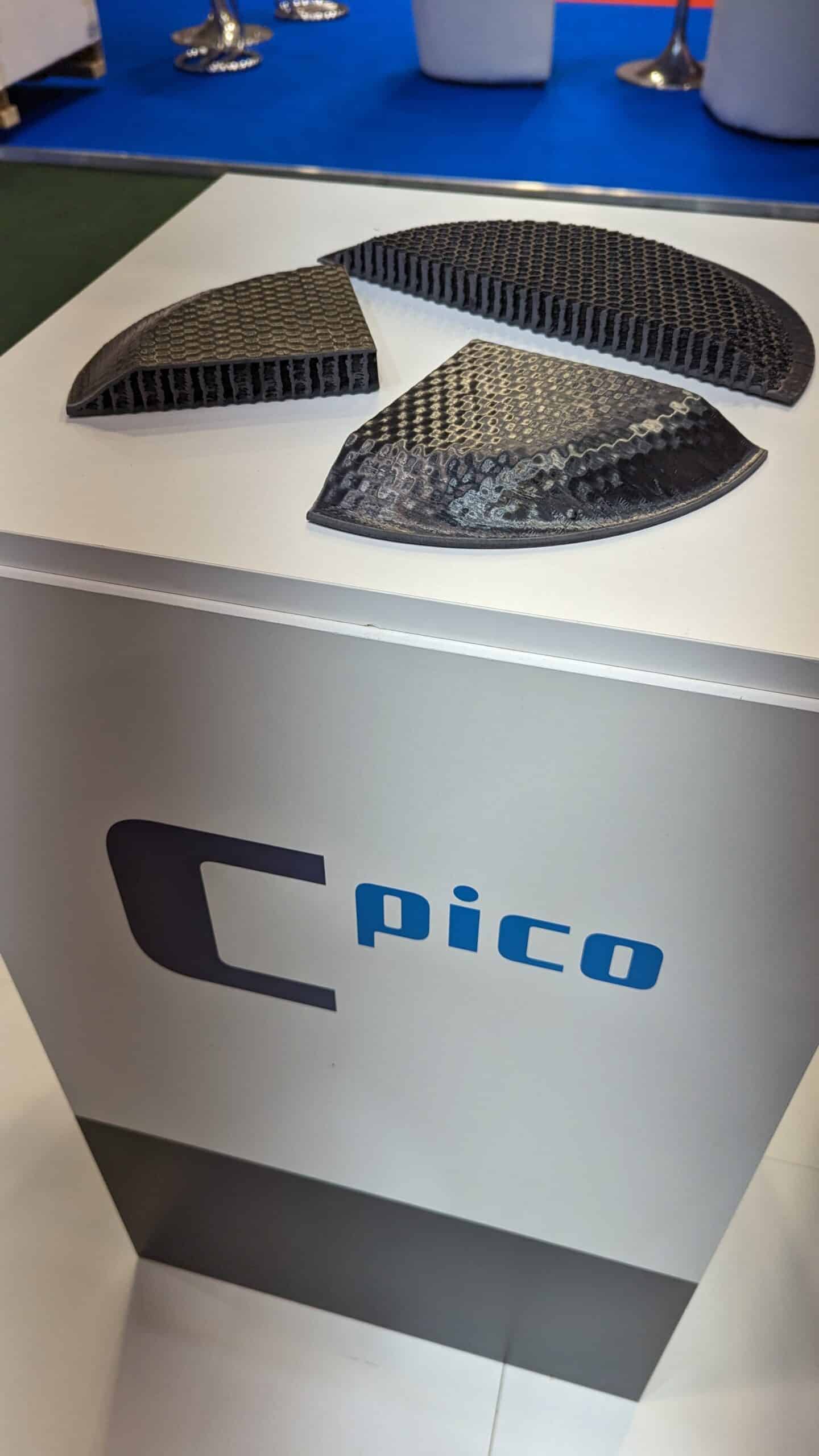

Coriolis CPico

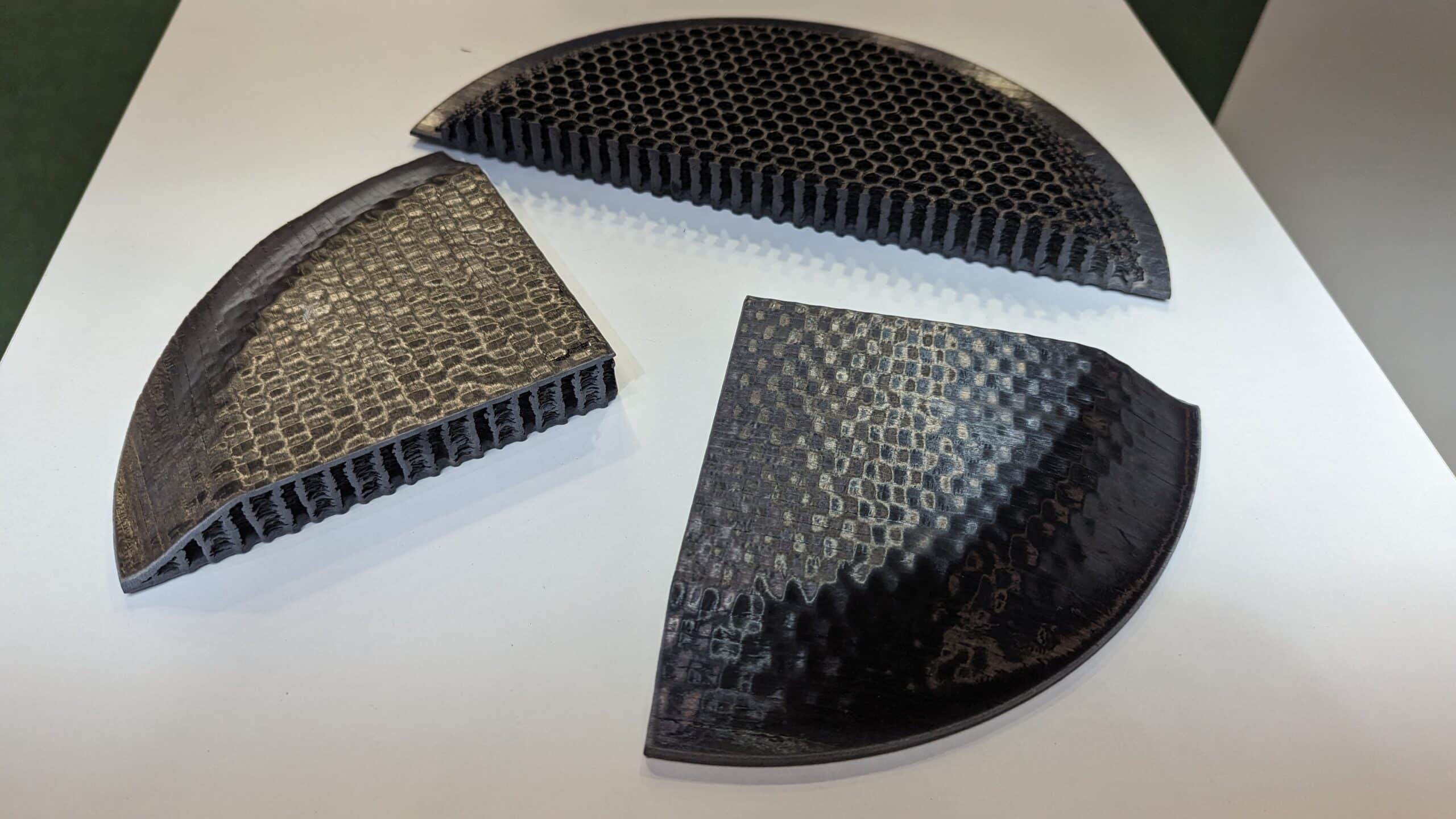

Thermoplastic multi process technology
Advantages
Continuous fiber

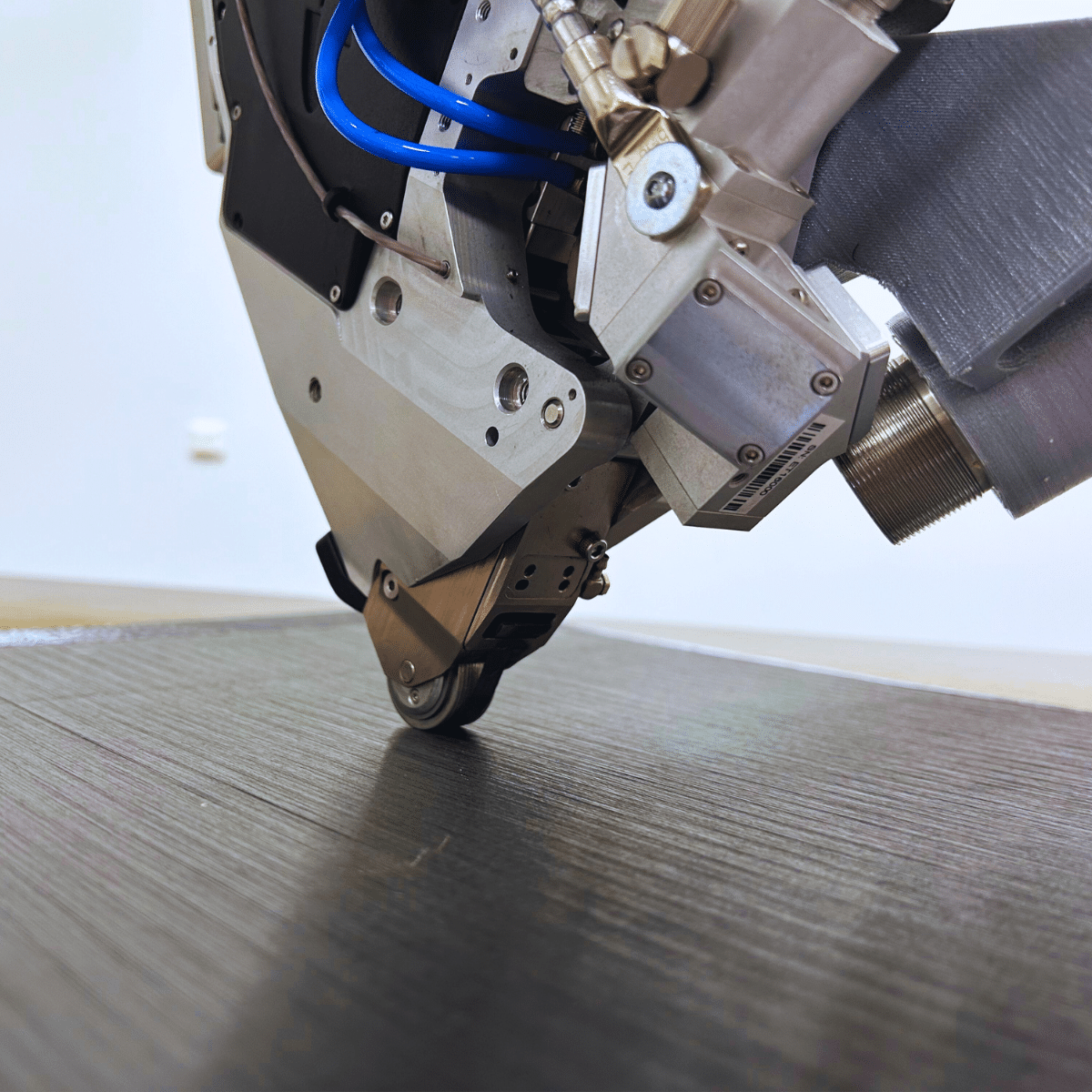

Automated Fiber Placement (AFP)
Filament
Fuze Filament Fabrication (FFF)
Pellets
Fuze Granular Fabrication (FGF)
Technical informations

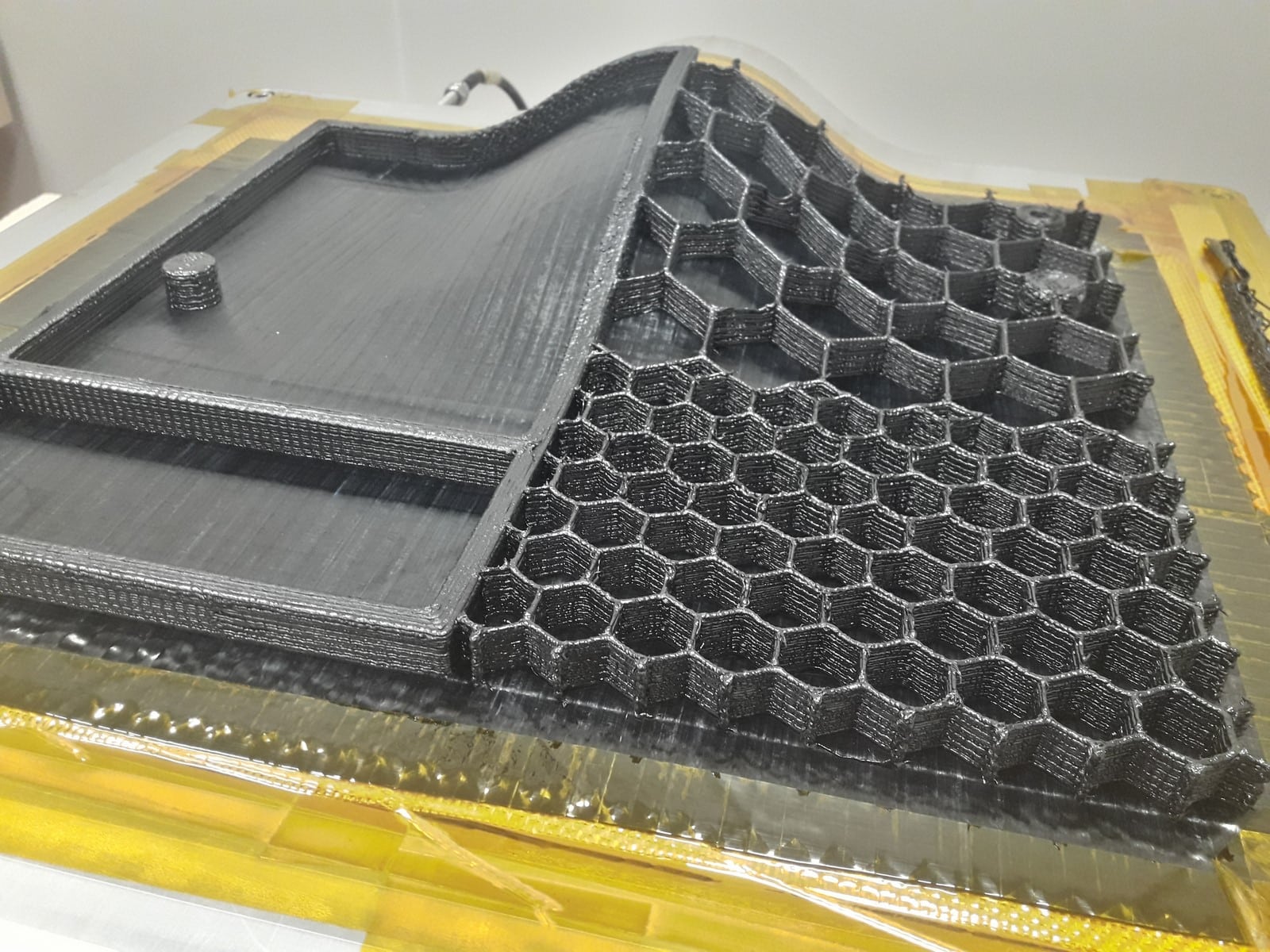

In-situ AFP/AM manufacturing in open area
| Localized heating with heating control |
| Dedicated AM nozzle design |
| Material storage with low moisture control |
Main components
| Robot | Comao NJ130-2 |
| Controller | Siemens |
| Positionner (2 axis x and y) | Comao (max 1000kg) |
| Online HMI | Coriolis |
| Programming software | Coriolis CADFiber® & AM Software |
AFP specifications
| Fiber configuration | Single fiber 1mm and 6.35mm |
| Cut and feed repeatability* | ± 2.5 mm at 300 m/s (for AFP) |
| Maximum Layup Speed* | 300 mm/s |
| Compaction force range | 120 N |
| Tolerance between course laid up on separate tapes | +2.5/-0 mm |
| Minimum distance between cutting and feeding an individual fiber | 10 mm |
| Minimum fiber length | 37mm |
| Dynamic head compliance | ±5 mm |
| Spool in a creel house with dry air in overpressure | |
| Laser heating device | 300W |
| Fiber Tension | up to 36N |
FGF and FFF specifications
| Filament diameter for FFF | 1.75mm |
| Nozzle diameter FFF & FGF | from 0.6mm to 1.2mm |
| Heating source | air torch and cartridge heater (max 500°C |
*Depends on the material
